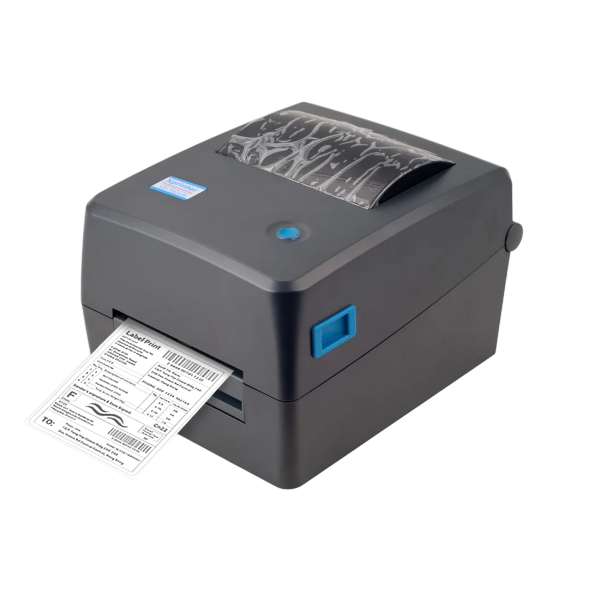

XPRINTER THERMAL TRANSFER BARCODE PRINTER (XP-TT424B)

Printing method: Supports both thermal transfer and direct thermal printing.

Resolution: XP-TT424B: 203 dpi

Maximum print width approx. 104 mm (≈4.09 in) for 203 dpi version; up to ~108 mm for 300 dpi version.

Maximum print length: up to 1,778 mm (≈70″) in some usage.

Print speed: XP-TT424B: up to ~127 mm/s (≈5″/s) for the 203 dpi model.

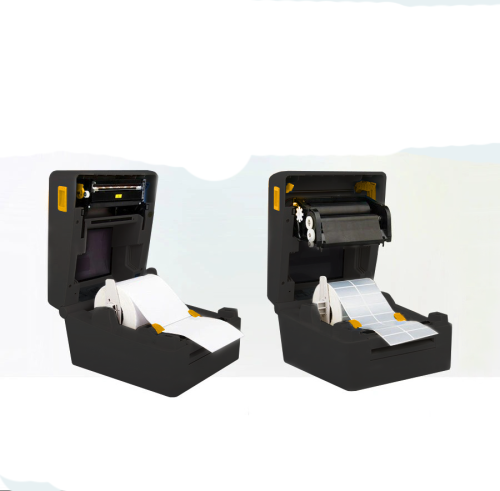

Media handling:

• Media types: continuous, gap, black mark, fan-fold, punched holes.

• Media width: ~25.4 mm to ~115 mm (1″-4.5″) approx.

• Ribbon width (for thermal transfer): ~25.4 mm to ~110 mm (1″-4.3″) with max ribbon length up to ~90 m.

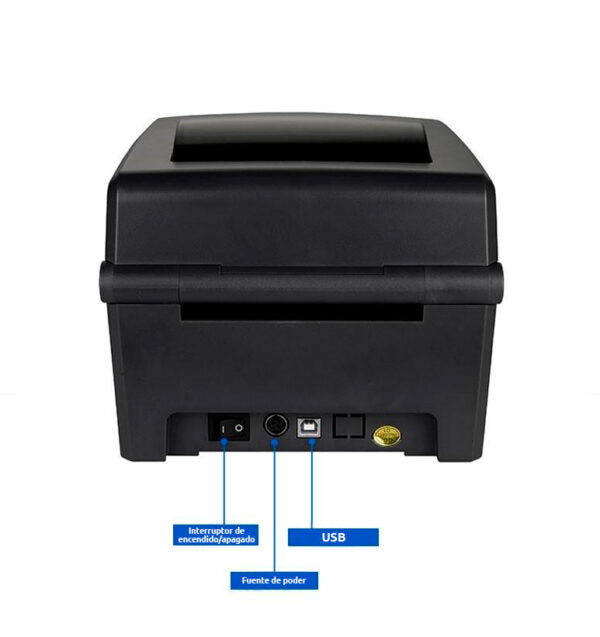

Interfaces:

• Standard: USB 2.0.

• Optional: Ethernet (LAN), WiFi, Bluetooth modules.

Emulations & barcodes supported:

• Emulations: TSPL, ZPL, EPL, DPL. xprintertech.com+1

• 1D barcodes: Code 39, Code 93, Code128, Codabar, Interleaved 2 of 5, EAN-8/13, UPC etc. xprintertech.com+1

• 2D barcodes: PDF-417, Maxicode, DataMatrix, QR code, Aztec. xprintertech.com+1

Physical / Environmental:

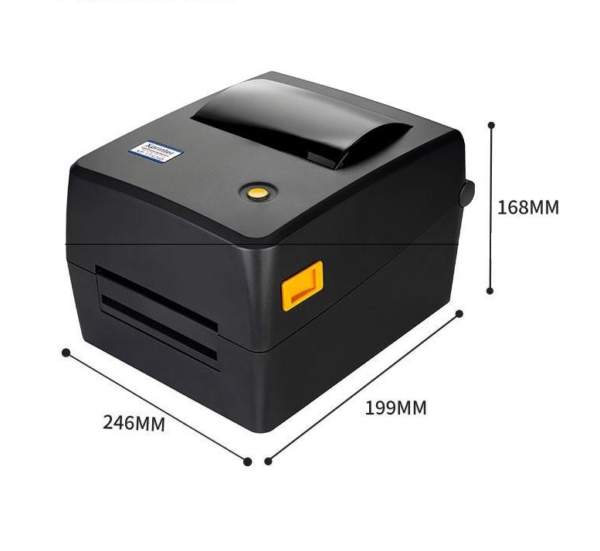

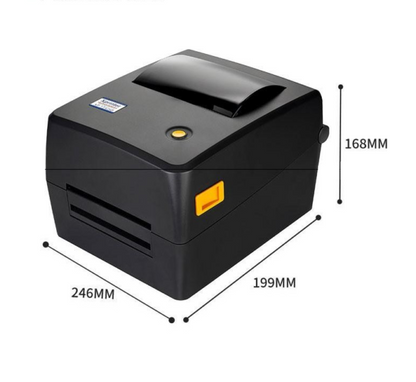

• Dimensions: ~246 mm × 199 mm × 168 mm (D × W × H). xprintertech.com

• Weight: ~1.62 kg. xprintertech.com

• Operating temperature: 5 °C to 40 °C (41 °F to 104 °F); storage: −40 °C to 60 °C. xprintertech.com+1

Reliability / Life:

• Print-head life: approx “30 km usage or 1 year” in some specs. xprintertech.com

Materials / Certification:

• Housing material: ABS. xprintertech.com

• Certifications: CE, FCC, CCC, RoHS, etc
