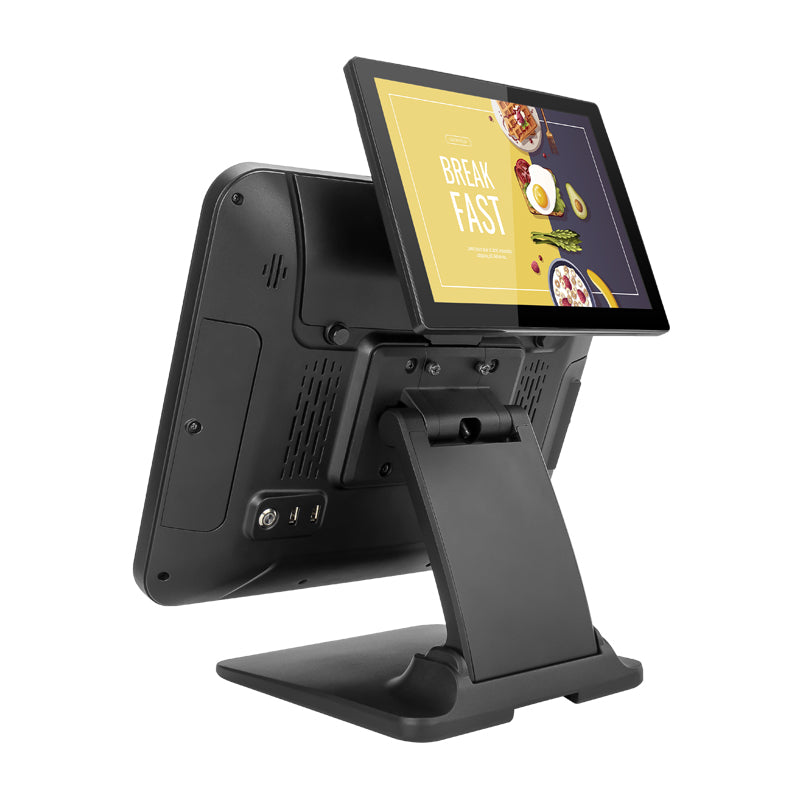

Customer Display 9.7" for SPS650C POS - Rear Mount HDMI/VGA Dual Screen

Compact Customer-Facing Display for SPS650C POS System

The 9.7-inch Customer Display is a dedicated rear-mount secondary screen designed exclusively for the SWISSPOSS SPS650C POS system. This compact, professional customer-facing display enhances the checkout experience by showing transaction details, pricing, and promotional content directly to your customers in a space-saving design.

Key Features

• Exclusive SPS650C Compatibility - Engineered specifically to mount on the SWISSPOSS SPS650C POS system
• Compact 9.7" Design - Perfect for smaller counters while maintaining excellent visibility
• Rear-Mount Design - Securely attaches to the back of the SPS650C for a clean, professional setup
• Dual Video Input - HDMI and VGA connectivity for flexible display options
• Extended/Duplicate Display Mode - Functions as a mirrored or extended screen from your main POS display
• Integrated Power Solution - 12V DC power drawn directly from SPS650C POS (no separate power adapter needed)
• Dedicated Control Panel - Built-in switches for power on/off, settings adjustment, and brightness control
• Space-Saving Size - Ideal for compact checkout counters and limited space environments
• Professional Display Quality - Clear, bright screen ensures customers can easily read transaction details
• Plug-and-Play Setup - Simple installation with all necessary mounting hardware included

Technical Specifications

• Screen Size: 9.7 inches (diagonal)
• Display Type: LCD TFT
• Resolution: 1024 × 768 (XGA)
• Aspect Ratio: 4:3
• Brightness: Adjustable via dedicated control panel
• Contrast Ratio: 500:1
• Viewing Angle: 160° horizontal / 140° vertical
• Response Time: 8ms
• Video Input: HDMI, VGA (D-Sub 15-pin)
• Display Mode: Extended display / Duplicate display (mirror mode)
• Power Input: 12V DC (powered directly from SPS650C POS)
• Power Consumption: ≤10W
• Control Panel: Power switch, Settings button, Brightness adjustment
• Mounting: Rear-mount bracket (SPS650C exclusive)
• Compatibility: SWISSPOSS SPS650C POS only
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 60°C
• Dimensions: Compact 9.7" form factor

Integrated Power System

No External Power Needed: The customer display draws 12V DC power directly from the SPS650C POS system through a dedicated power provision. This eliminates cable clutter and simplifies your counter setup.

Power Management: The built-in power switch allows you to turn the customer display on/off independently without affecting the main POS system.

Easy Control & Adjustment

The dedicated control panel provides convenient access to:

• Power Switch - Turn the display on/off as needed
• Settings Button - Access display configuration menu
• Brightness Control - Adjust screen brightness for optimal visibility in different lighting conditions
• Menu Navigation - Fine-tune display settings without accessing the main POS

Dual Video Connectivity

Connect via HDMI or VGA depending on your setup:

• HDMI Connection - Digital signal for crisp, clear display quality
• VGA Connection - Analog backup option for maximum compatibility
• Extended Mode - Use as a separate screen to show different content
• Duplicate Mode - Mirror your main POS display for customer viewing

What's Included

• 9.7" Customer Display
• Rear-mount bracket for SPS650C POS
• HDMI cable
• VGA cable
• 12V DC power cable (connects to SPS650C)
• Mounting screws and hardware
• Installation guide
• User manual

Perfect For

• Small retail stores with limited counter space
• Cafes and coffee shops
• Boutiques and specialty stores
• Pharmacies with compact checkout areas
• Service counters
• Any business using SWISSPOSS SPS650C POS with space constraints

Installation & Setup

Simple Installation: The rear-mount bracket attaches securely to the back of your SPS650C POS system. Connect the video cable (HDMI or VGA) and the 12V DC power cable to the dedicated provision on the SPS650C, and you're ready to go.

Display Configuration: Configure the display as extended or duplicate mode through your POS system's display settings. The customer display will show transaction details, pricing, promotional messages, or any content you choose to display.

Why Choose the 9.7" Customer Display?

Space-Saving Design: Perfect for businesses with limited counter space who still want to provide customers with transaction visibility.

Enhanced Customer Experience: Customers can see exactly what they're being charged for, building trust and reducing transaction disputes.

Professional Appearance: The integrated rear-mount design creates a clean, professional checkout counter without messy cables or separate stands.

Exclusive Compatibility: Designed specifically for the SPS650C, ensuring perfect fit, seamless integration, and reliable performance.

Simplified Power Management: Drawing power directly from the POS eliminates the need for additional power outlets and reduces cable clutter.

Compact Yet Effective: The 9.7" screen provides excellent visibility while taking up minimal space, making it ideal for smaller retail environments.

Note: This customer display is designed exclusively for the SWISSPOSS SPS650C POS system and is not compatible with other POS models.
